Product

20A 24V DC Brush-less Integrated Operating Mechanism

Parameters
Voltage: DC24V
Output Efficiency: 100W
Current: 5A
Insulation Class: F
Gate Operation Time: 0.3S-2S
Operating lifetime: ≥5 million times
Working Environment
Temperature Range: -30℃~+60℃[-22°F~+140°F](temperatures below -30℃/-22°F required a heating element)
Humidity: 85% or lower
Altitude: 1000M or lower
Application
Generally suited for controlling gates leading to highways and expressways,as well as vehicle-plate reading systems for gated communities and commercial parking lots.

19B DC Brush-less Integrated Commercial Gate Heavy Operating Mechanism

Parameters
Voltage: DC24V
Output Efficiency: 120W
Current: 6A
Insulation Class: F
Gate Operation Time:0.3S-10S
Operating lifetime: ≥5 million times
Working Environment
Temperature Range: -35℃~+60℃[-31°F~+140°F]
Humidity: 90% or lower (so long as there is no accumulated dew)
Altitude: 1000M or lower
Application
Generally suited for controlling commercial pathway gates(large openings in particular) and vertical lift gates.

19A DC Brush-less Integrated Commercial Gate Heavy Operating Mechanism

Parameters
Voltage: DC24V
Output Efficiency: 120W
Current: 6A
Insulation Class: F
Gate Operation Time: 0.3S-10S
Operating lifetime: ≥5 million times
Working Environment
Temperature Range:-35℃~+60℃[-31°F~+140°F]
Humidity: 90% or lower (so long as there is no accumulated dew)
Altitude: 1000M or lower
Application
Generally suited for controlling commercial pathway gates(large openings in particular) and vertical lift gates.

18C DC Brush-less Integrated Commercial Gate Light Operating Mechanism

18B DC Brush-less Integrated Operating Mechanism

Parameters
Voltage: DC24V
Output Efficiency: 120W
Current: 6A
Insulation Class: F
Gate Operation Time: 0.3S-5S
Operating lifetime: ≥5 million times
Working Environment
Temperature Range: -40℃~+60℃[-40°F~+140°F](temperatures below -20℃/4°F required a heating element)
Humidity: 85% or lower
Altitude: 1000M or lower
Application
Generally suited for controlling gates leading to highways and expressways,as well as vehicle-plate reading systems for gated communities and commercial parking lots.

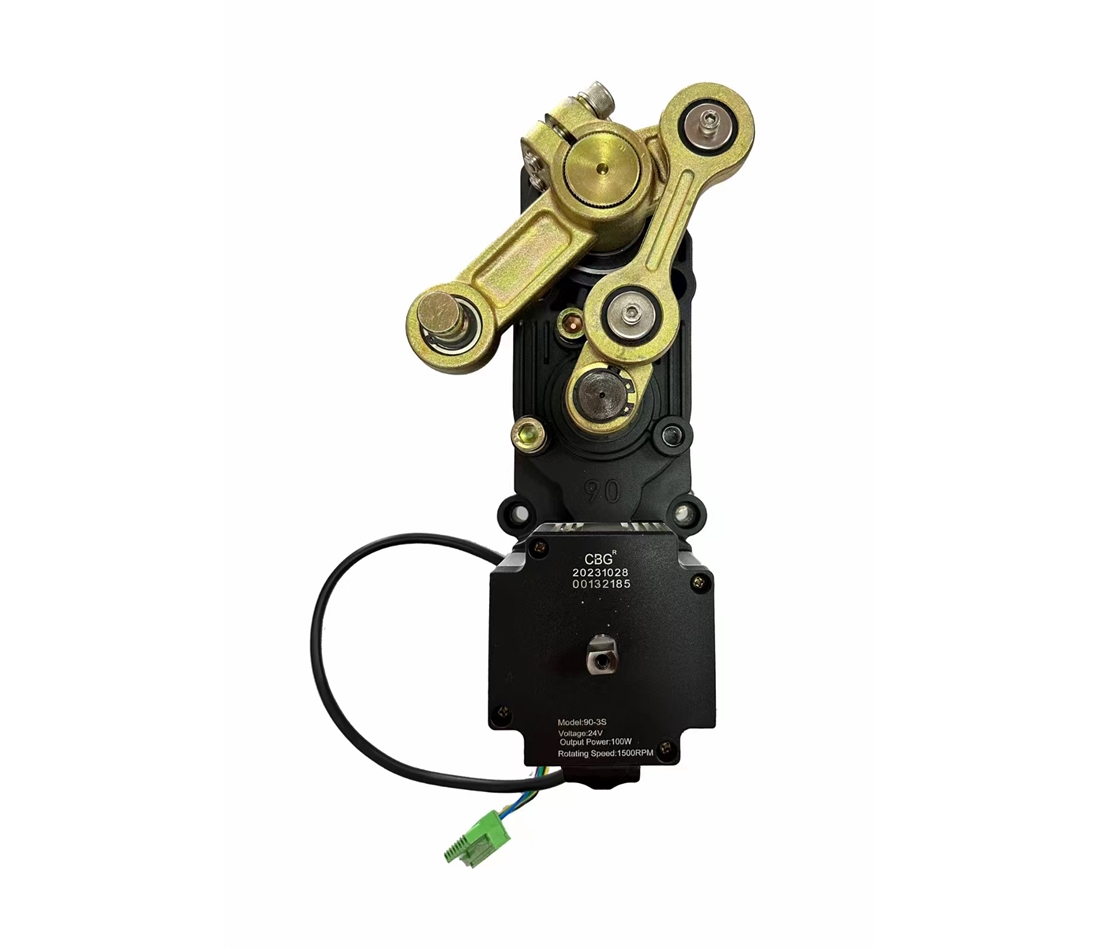

90 DC Brush-less Lifting Booom Barrier Mechanism

Parameters
Voltage: DC24V
Output Efficiency: 100-120W
Current: 5A
Insulation Class: F
Gate Operation Time: 0.3S-6S
Operating lifetime: ≥5 million times
Working Environment
Temperature Range: -40℃~+60℃[-40°F~+140°F](temperatures below -20℃/4°F required a heating element)
Humidity: 85% or lower
Altitude: 1000M or lower
Application
Generally suited for controlling gates leading to highways and expressways,as well as vehicle-plate reading systems for gated communities and commercial parking lots.

19 Durable box airnorne gate motor

Parameters
Voltage: DC24V
Output Efficiency: 140-200W
Current: 6A
Insulation Class: F
Gate Operation Time:3-10S
Operating lifetime: ≥5 million times
Working Environment
Temperature Range: -40℃~+60℃[-40°F~+140°F](temperatures below -20℃/4°F required a heating element)
Humidity: 85% or lower
Altitude: 1000M or lower
Application scope Motor application in advertising gate (long pole ), large gate

18B double box airborne gate motor

Parameters
Voltage: DC24V
Output Efficiency: 140-200W
Current: 6A
Insulation Class: F
Gate Operation Time:3-10S
Operating lifetime: ≥5 million times
Working Environment
Temperature Range: -40℃~+60℃[-40°F~+140°F](temperatures below -20℃/4°F required a heating element)
Humidity: 85% or lower
Altitude: 1000M or lower
Application scope Motor application in advertising gate (long pole ), large gate

21B DC Brushless gate motor
